Conventional Duobinary Transmitter

Compatibility:

Project ODB with Filters ModulationSystem.osd (Figure 1) demonstrates a system that is an optical duobinary system based on a conventional duobinary transmitter implemented by using a Mach-Zehnder modulator driven with three-level signals generated by using electrical low-pass filters.

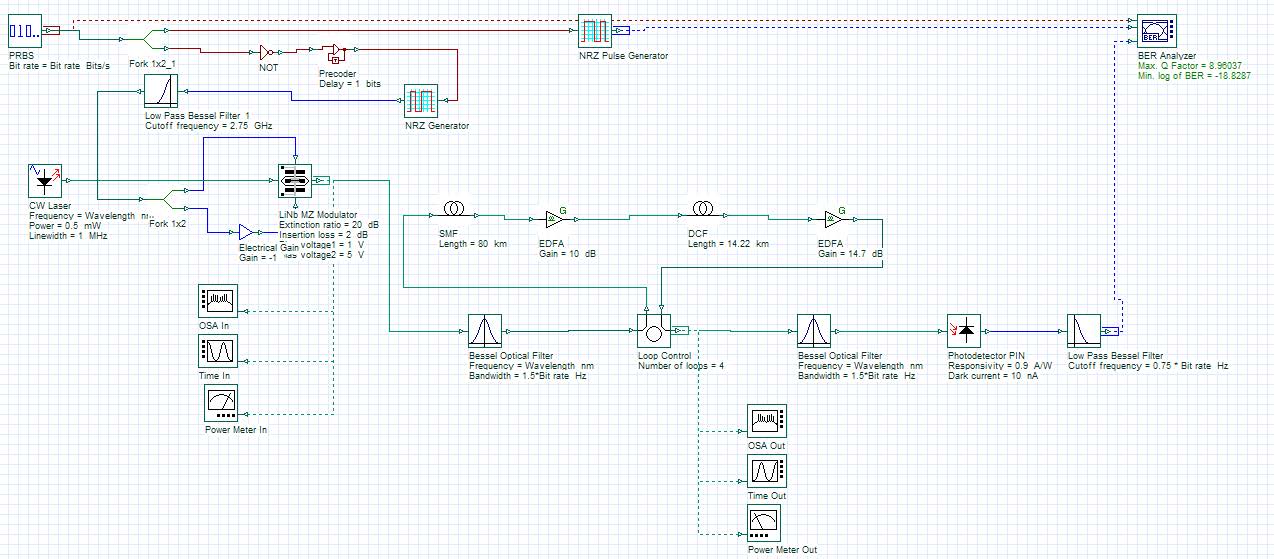

Optical System - Figure 1 - Optical duobinary system

Figure 1 – Optical duobinary system
