Synthesis of a Grating for Dispersion Compensation
Step 1
| 1 |
Open a new project with File > New > Single Fiber. |
| 2 |
Choose Calculation > Inverse Scattering Solver to get the Inverse Problem Solver dialog box. |
| 3 |
Set the From and To wavelength fields to 1.5498 and 1.5502. |
| 4 |
Set the grating length at 20 cm in the Length field. |
| 5 |
Click on the Ref/Trans Define button to define the reflection spectrum. |
| 6 |

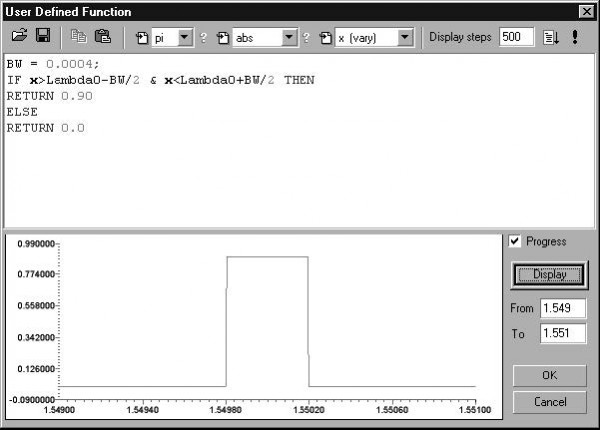

Set the bandwidth to 0.4 nm and the reflectivity to 0.9 within this band. |
| 7 |
Click OK. |
| 8 |
Select the Disp radio button and click the adjacent Define button to define the dispersion spectrum. |
| 9 |

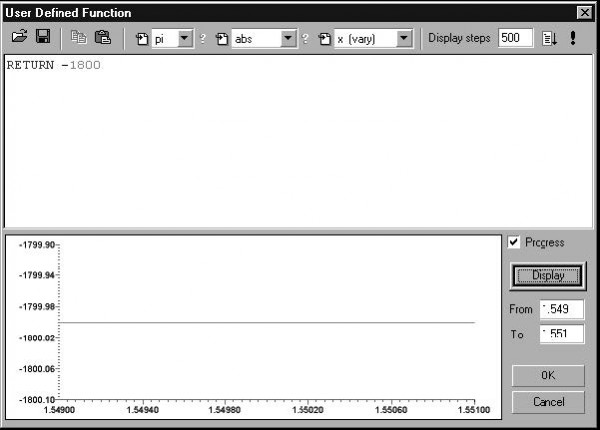

In this screen, set the dispersion to -1800 ps/nm for all wavelengths, as seen above. |
| 10 |
Click OK. |
| 11 |
Click the Causality button to see the impulse response of the specified spectrum. |
Step 2
| 1 |
Click Start in the Inverse Problem Solver dialog box to start the layer peeling algorithm.. |
| 2 |
Select the Delay tab. |
| 3 |
Select the red and light blue curves to show the transmitted and reflected delays. The dark blue curve shows the target delay. |
| 4 |
Click in the graph window and go to Tools > Group Delay |
- The window displays the reconstructed group delay with a second order fitting.
The dispersion is reported in the Results frame as -1773.79 ps/nm, in close
agreement with the desired response.
