Lesson 7 – Synthesis of a Grating for Dispersion Compensation
Synthesis of a Grating for Dispersion Compensation

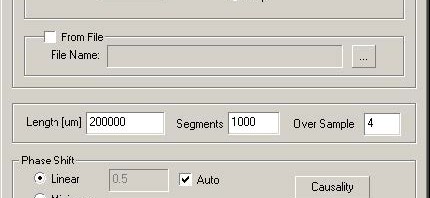

Step 1 1 Open a new project with File > New > Single Fiber. 2 Choose Calculation > Inverse Scattering Solver to get the Inverse Problem Solver dialog box. 3 Set the From and To wavelength fields to 1.5498 and 1.5502. 4 Set the grating length at 20 cm in the Length field. 5 Click on…
